HIVISION HDMIEXT120-U 4K-120M Cat5E/Cat6 2Xusb+Ir 120Mt Hdmı Kvm Extender

Connection and operation

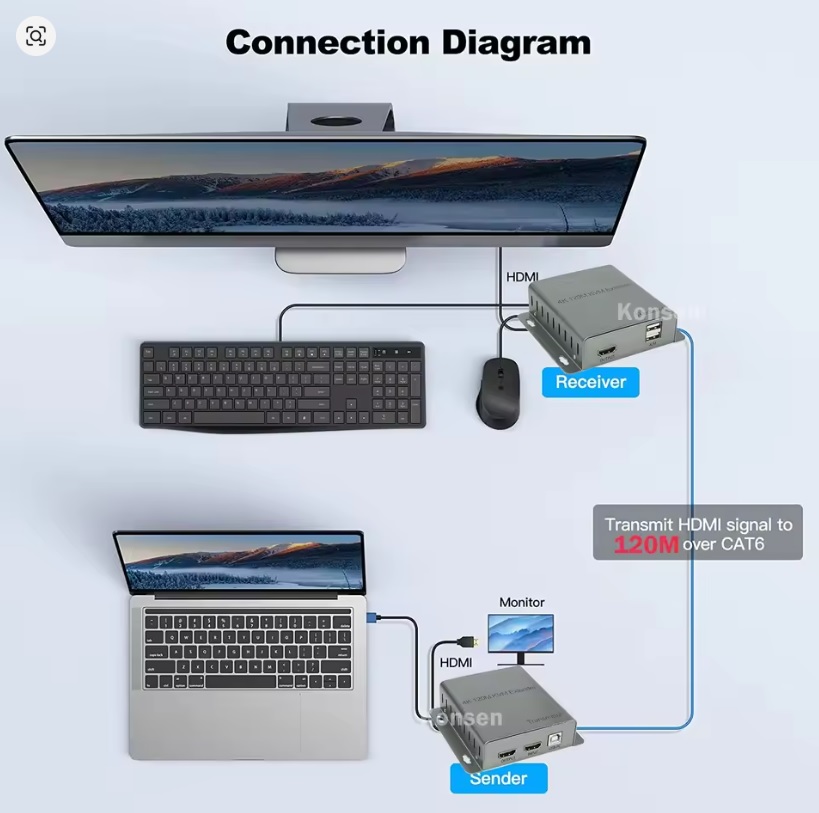

1. Connect one HDTV cable between source device and TX Extender, the max cable distance is 10 meters.
2. Connect one HDTV cable between display device and RX Extender, the max cable distance is 10 meters.
3. Connect single cat-5e or cat-6(recommended) cables instead of HDTV cables between TX and RX Extender, the max cable distance is 120 meters.
4. Connect 5V power supply to the TX and RX.

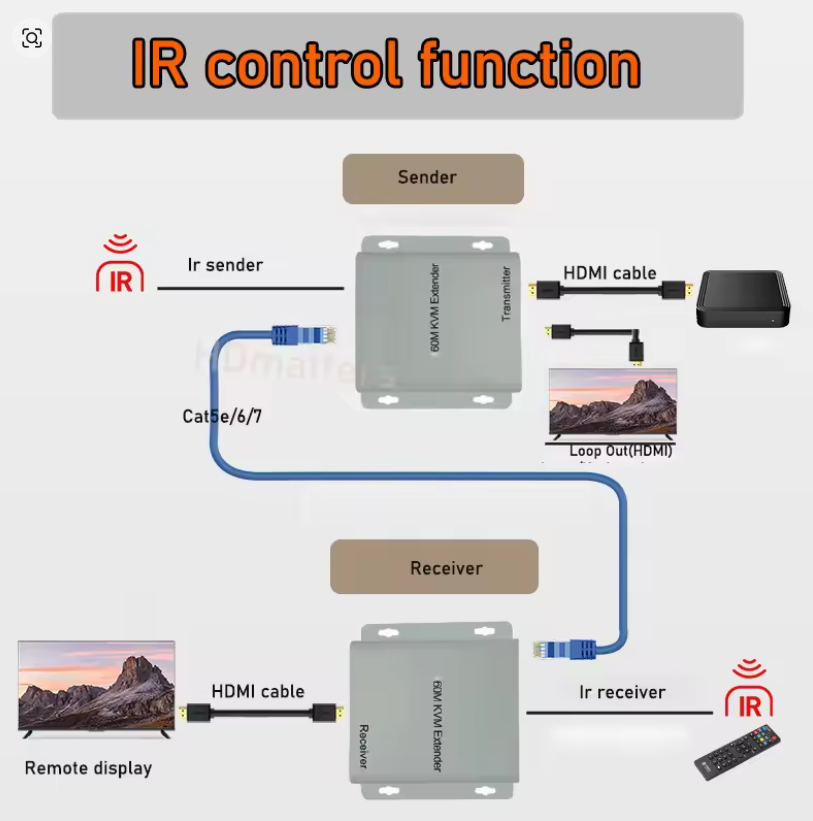

5. Plug the IR receiver cadle into the receiver, and IR transmitter cable plug into the transmitter if you need the IR receiver cable, aim at the equipment which needs to control.
6. Plug the mouse and keyboard into two USB port of the receiver, and connect the USB port of the transmitter with the computer if you need the KVM control function.
