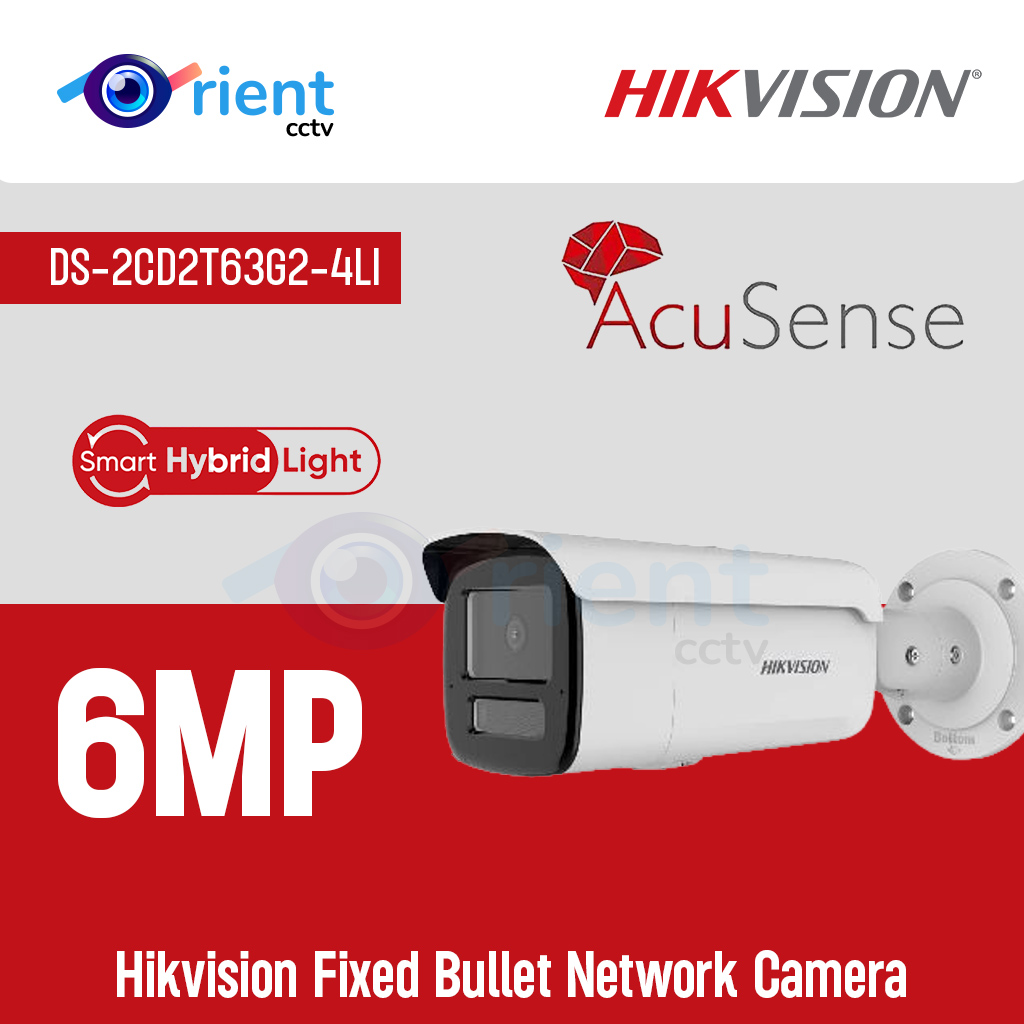

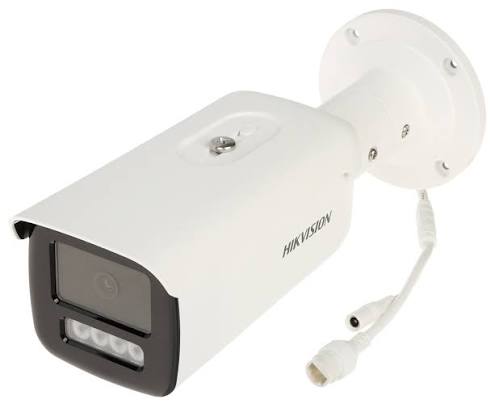

DS-2CD2T63G2-2LI(2U)/4LI(2U)
6 MP Acusense Smart Hybrid Light Fixed Bullet Network Camera
 High quality imaging with 6 MP resolution
 Acusense: Focus on human and vehicle classification based on deep learning
 Smart Hybrid Light: Integrates IR and White lights, 4 supplemental lighting modes
 -2U: Built-in arrayed dual-microphone for real-time high quality audio security
 Clear imaging against strong back light due to 120 dB true WDR technology
 Efficient H.265+ compression technology
 Water and dust resistant (IP67) and vandal-resistant (IK10)
 Specification
Camera
Image Sensor 1/2.4″ Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
Depth of Field
2.8 mm: 1.8 m to ∞
4 mm: 3.1 m to ∞
6 mm: 6.4 m to ∞
DORI
DORI
2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
6 mm, D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range
-2LI and -2LI2U models: up to 60 m
-4LI and -4LI2U models up to 80 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream
50 Hz:
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Bit Rate Control CBR, VBR
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Target Cropping Yes
Audio
Audio Compression -2LI2U and -4LI2U models: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-2LI2U and -4LI2U models: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps
(G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate -2LI2U and -4LI2U models: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering -2LI2U and -4LI2U models: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3,
WSSE and digest authentication for Open Network Video Interface
Client iVMS-4200, Hik-Connect, Hik-Central
Network Storage
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
Web Browser
Plug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters Switch Yes
Day/Night Switch Day, Night, Auto, Schedule
Image Settings Rotate mode
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key Yes
Audio
Built-in Microphone:
-2U: Arrayed dual-microphone
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger
recording, trigger capture
Deep Learning Function
Perimeter Protection
Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
General
Power
-2LI and -2LI2U models:
12 VDC ± 25%, 0.66 A, max. 8.0 W, Ø5.5 mm coaxial power plug, reverse polarity
protection,
PoE: IEEE 802.3af, Class 3, max. 9.5 W
-4LI and -4LI2U models:
12 VDC ± 25%, 0.87 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity
protection,
PoE: IEEE 802.3af, Class 3, max.12 W
Material Metal
Dimension 88.7 mm × 93.1 mm × 286.7 mm (3.5″ × 3.7″ × 11.3″)
Package Dimension 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
Weight Approx. 1150 g (2.5 lb.)
With Package Weight Approx. 1640 g (3.6 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language Polish
General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC
61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
 Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.
This model has NO SPECIFIC PROTECTION.
Level Description
Top-level protection
Hikvision products at this level are equipped for use in areas where professional
anti-corrosion protection is a must. Typical application scenarios include coastlines,
docks, chemical plants, and more.
Moderate protection
Hikvision products at this level are equipped for use in areas with moderate
anti-corrosion demands. Typical application scenarios include coastal areas about 2
kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain.
No specific protection
Hikvision products at this level are equipped for use in areas where no specific
anti-corrosion protection is needed.
 Available Model
DS-2CD2T63G2-2LI 2.8mm PL
 Dimension
 Accessory
 Optional
DS-1275ZJ-SUS
Vertical pole mount
DS-1276ZJ-SUS
Corner mount
DS-1260ZJ
Junction box
DS-1275ZJ-S-SUS
Vertical pole mount
